Em stock


7,90 c/ Iva

Em stock

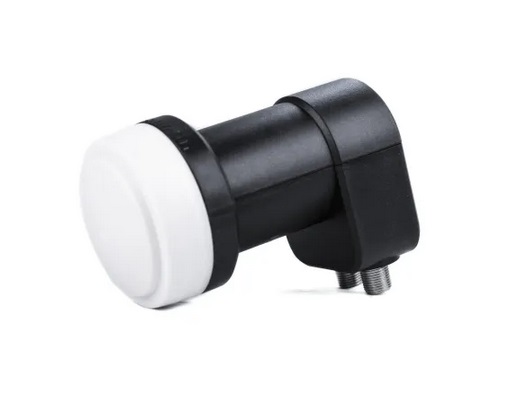

Conversor de LNB Duplo é utilizada para receber sinais de um satélite para dois receptores ou um PVR HD, 3D e Ultra HD 4K
LNB muito bem com receptores oferecidos por todos os operadores de satélite, por exemplo. Nc +, Cyfrowy Polsat, SmartHD etc.

Vantagens LNB:
– resistente ao sinal LTE
– nível de ruído ultrabaixo de 0,1 dB
– alimentado por tecnologia PLL
– nível de ganho otimizado até 61dB
– recepção em qualidade Full HD, 3D e Ultra HD 4K

REF: GT-TL1 Categoria:

Parâmetros técnicos:
Frequência de entrada:
– Banda baixa: 10 , 7 ~ 11,7 GHz
– Banda alta: 11,7 ~ 12,75 GHz
Faixa de frequência de saída:
– Banda baixa: 950 ~ 1950 MHz
– Banda alta: 1100 ~ 2150 MHz
Frequência LO:
– Banda baixa: 9,75 GHz
– Banda alta: 10,60 GHz
Estabilidade de frequência:
– +/- 0,5 MHz (máximo) à temperatura ambiente
Ruído de fase de frequência do oscilador local:
– 60dBc / Hz a 1 kHz (máximo)
– 85dBc / Hz a 10 kHz (máximo)
– 97dBc / Hz a 100 kHz (máximo)
Nível de ruído:
– 0,1dB
Ganho de conversão:
– 57 ~ 61dB
Tensão de comutação de polaridade:
– VERTICAL: 11,0 ~ 14,0 V DC
– HORIZONTAL: 16,0 ~ 20,0 V DC
Troca de
banda : – Banda baixa: 0 kHz
– Banda alta: 22 kHz (+/- 4kHz)
Consumo de corrente:
– 140 mA
Tipo de conector de saída:
– 75 OHMS F-Fêmea
Faixa de temperatura operacional:
– -40 ° C ~ + 65 ° C
Diâmetro de aperto:
– 40 mm
